​Minimum Order Quantity: 1 pcs

Machine Type: Battery cable Crimping Machine

Automation Grade: Semi-Automatic

Capacity: 10 Ton

Input Voltage: 440 V

Frequency Hz: 50 Hz

Model Name/Number: CP-10

Power Source: Electric

Machine Structure: Vertical



Ø  Uniquely designed for  ease of use and change over of Applicators. With 10 TON Capacity
Ø  BOTH LONG and Short Shut height applicators settable.
Ø  LED lighting source built into the work area to focus on the crimping area for proper visibility.
Ø  The terminal reel bracket pipe stand  for quick change from end to side feed terminal reels.
Ø  Special Feature for applicator setting using jog mode in reverse or forward direction.

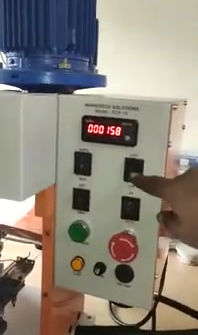

Ø  Counter for No. of Pieces Crimped, with easy reset.
Ø  Dimensions (W × H × D) 260 x 710 x 300 mm  Excludes reel brackets
Ø  Weight: 115 kg

​

Advantages:

• Quality Precision Bench Top Crimping

• Forward and Reverse Jog Mode

• SDS Single  digit Setup for applicator setting

• Adjustable Light Focused on Crimping Tooling

• Easy Opening Safety Guard and Quick Release Base (optional)

• Integrated Pneumatic Feed System optional

• Optional Crimp Force Monitor Available

• Quick-change applicator base plate

• Quick-change terminal guides for changing between side & rear feed terminals

• Counters for lot size, batch size and total machine cycles

• Variable press cycle speed for difficult applications

• Jogging function (left / right) with home position display

• Automatic home position function

• Fine adjustment of crimping height (micro-adjustment)

• Strong steel, machined base and frame

​

​
